CHRYSLER 25163290, 25163543, 4723358, 4741717, 4762718, 4773804, 5014024AA Electric Fuel Pump Assembly

CHRYSLER 25163290, 25163543, 4723358, 4741717, 4762718, 4773804, 5014024AA Electric Fuel Pump Assembly

CHRYSLER 25163290, 25163543, 4723358, 4741717, 4762718, 4773804, 5014024AA Electric Fuel Pump Assembly

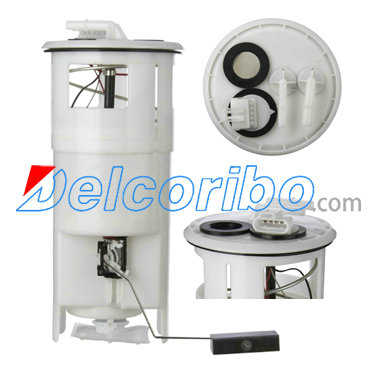

FPM1581 CHRYSLER Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 12.6
Max Pressure Range (Psi): 54
Max Free Flow (Gph): 58.1
Resistance Empty (Ohms): 1015
Resistance Full (Ohms): 5
Rheostat Range (Ohms): 1015-5
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 50.2
Min Pressure Range (Psi): 48
Strainer Included: Yes
Pin Count: 5
Pin Shape: Round
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
CHRYSLER 25163290, P246M, 25163543, 4723358, 4741717, 4762718, 4773804, 5014024AA,
SPECTRA PREMIUM SP6003M
DELPHI FG0200
BOSCH 67616
AIRTEX E7054M
CHRYSLER CONCORDE 1993-1995
CHRYSLER INTREPID 1993-1995
CHRYSLER LHS 1994-1995
CHRYSLER NEW YORKER 1994-1995
DODGE INTREPID 1993-1995
EAGLE VISION 1993-1995
