Fuel System
>
Electric Fuel Pump Assembly
>
TOYOTA 7702002180, 7702002181, 7702002410, 7702002291, 8332002010, 232170D030, 232200H130, 232200H131 Electric Fuel Pump Assembly

TOYOTA 7702002180, 7702002181, 7702002410, 7702002291, 8332002010, 232170D030, 232200H130, 232200H131 Electric Fuel Pump Assembly

TOYOTA 7702002180, 7702002181, 7702002410, 7702002291, 8332002010, 232170D030, 232200H130, 232200H131 Electric Fuel Pump Assembly

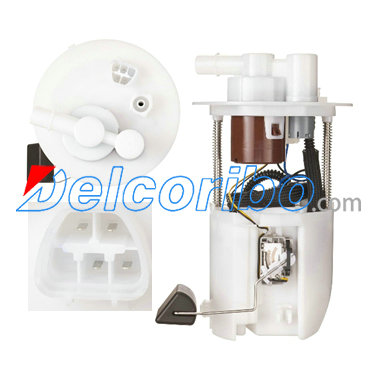

FPM2052 TOYOTA Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10.31
Max Pressure Range (Psi): 49.3
Max Free Flow (Gph): 57.27
Resistance Empty (Ohms): 410
Resistance Full (Ohms): 15
Rheostat Range (Ohms): 410-15
Outlet Quantity: 1
Outlet Type: Push In
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 27.27
Min Pressure Range (Psi): 49.3
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
7702002180, 7702002181, 7702002410, SP9047M, SP9167M, 19185090, 7702002291, 88974776, 8332002010, 19331964, 232170D030, 232200H130, 232200H131, 2322037160,
SPECTRA PREMIUM SP9165M
DELPHI FG0938
DELPHI FG1640
AIRTEX E8874M
AIRTEX E3781M
TOYOTA COROLLA 2005-2019
TOYOTA MATRIX 2005-2014
