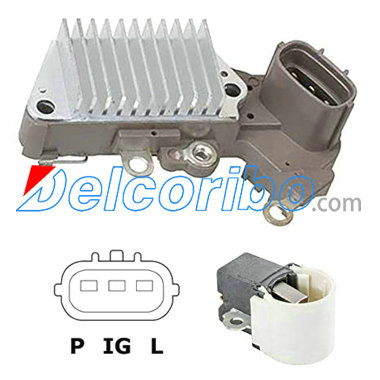

Caterpillar 113-4462, 1134462 Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting

138638
IN449
Regulator
12 Volt, A-Circuit, P-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: Caterpillar, Yanmar
Replaces: Caterpillar 113-4462, 1134462 Denso 126000-1940, 126000-2181, 1260001940, 1260002181 NEW ERA IVR-531, MOILETRON VR-H2005-59, VRH200559
Unit Nos: Caterpillar 105-2814, 1052814 Nippondenso 101211-901, 101211-994, 101211901, 101211994, Yanmar 119773-77200, 100213-2940, 100213-2950, 11977377200, 1002132940, 1002132950
Lester Nos: 12192, 12355
WAI Ref. Nos: 1-2458-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is not an output terminal.

AS-PL ARE6032
CASCO CRE40130AS
ERA 215681
LAUBER CQ1010393
MAGNETI MARELLI 940016085300
MESSMER 215681
MOBILETRON VR-H2005-59 VRH200559
PowerMax 1113351, 81113351
SANDO SRE40130.0 SRE401300
WAIglobal IN449
