Throttle Position Sensor: Common Failures and Case Analysis



The throttle position sensor (TPS), also known as the throttle valve switch, is the device that detects the engine condition. This article introduces the function and common failures of the throttle position sensor. Finally, there are two cases to analyze. Let's dive right in.


1. Function

2. Common failures

3. Case analysis


1. Function


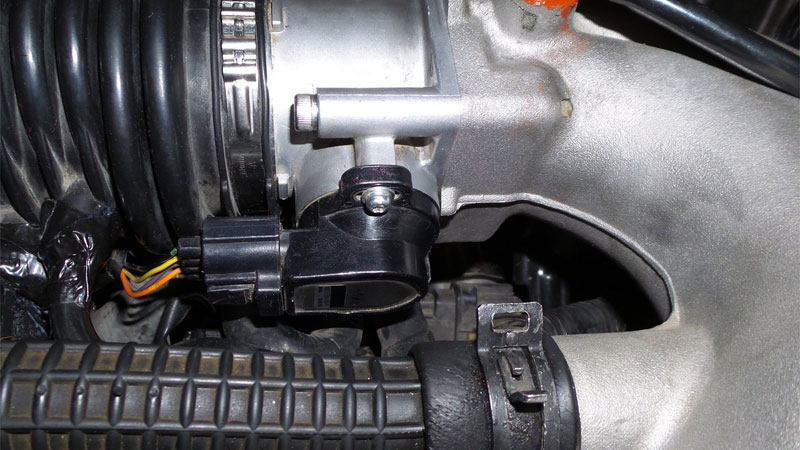

The throttle position sensor is also known as the throttle valve switch. Its primary function is to detect whether the engine is in idle, load, acceleration, or deceleration mode. It is essentially a variable resistor and several switches installed on the throttle body.

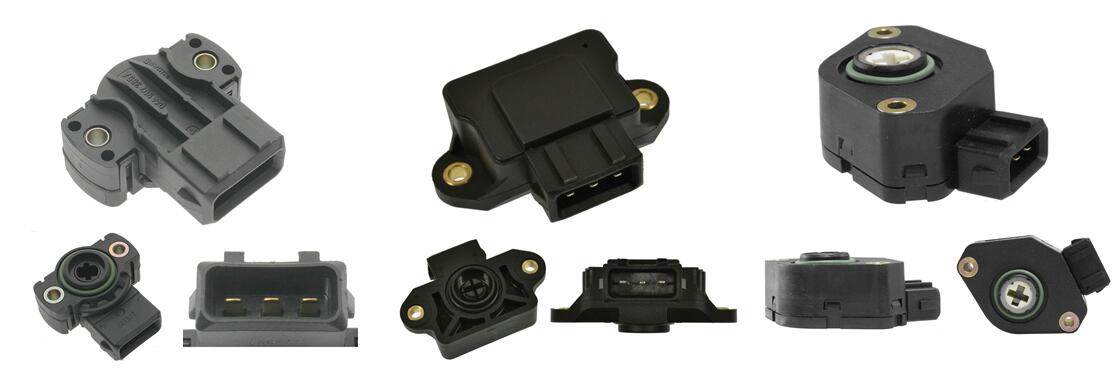

Various Throttle Position Sensors to Buy


The resistor's spindle links to the throttle. It has two contacts: a fully opening contact and an idle contact. When the throttle is in the idle position, the idle contact closes and sends the signal to the ECU.


When the throttle is in other situations, the idle contact opens and sends the voltage signal, which is different from signals at throttle angles. The electronic control unit then identifies the engine load according to the value of the signal voltage.


The increasing and decreasing rate of the signal voltage change within a certain period recognizes whether it's in the acceleration or deceleration mode. The ECU uses this information to correct the fuel injection or to control the fuel cut-off.


2. Common Failures


When the sensor damages, the ECU controls the fuel injection in terms of the default value. At the same time, the mass air flow sensor plays a crucial role in maintaining the fuel injection. After putting the pedal to the metal, the engine correspondingly starts a little slower. But rapid acceleration doesn't act well, even leads to a stall.


If the sensor is faulty, the car can't refuel. The vehicle has no force and poor throttle control, which affects the automatic gear jump. This sensor is most important device to control the air-fuel ratio. That is to say, the sensor's damage makes the acceleration of the fuel injection lack of basis. These are the symptoms of a defective throttle position sensor.




The throttle position sensor detects the throttling threshold to identify the engine operating condition and load level, which provides the throttle signal in the automatic transmission. The sensor is a friction part but also a wearing part. The failed one leads to the following failures.


(1) Short circuit or open circuit in the Idle speed switch.


(2) The engine is easy to stall or hard to start while driving. These two symptoms are the most common failures of the sensor.


(3) The idle speed is unstable during the engine running process. Intermittent juddering happen when accelerating. The TPS failure also causes a slow response, sometimes high and sometimes low speed, occasionally short circuit or open circuit.


(4) The installation and adjustment of the TPS are improper so that the idle speed switch isn't closed when the throttle is fully closed. Or the idle speed switch is still closed when the throttle has a certain degree of throttling threshold.


(5) The sliding contact of the linear variable resistor works poorly. The output signal of the throttle position sensor is intermittently interrupted during the throttle's fully closed to the fully opening.


3. Case analysis


Case 1


Symptom: Volkswagen car, instantaneous surge happens when the engine speed reaches 3000 rpm. Every time the instantaneous surge occurs, the throttle (accelerator) is almost in the same position. Meanwhile, the fuel consumption increases, the power decreases.


Analysis:


(1) The throttle position sensor doesn't work.


(2) The crankshaft position sensor doesn't work. The signal isn't stable.


(3) The
ignition system failed, which leads to a lack of fire.


(4) The
mass air flow sensor has an episodic failure.


Diagnosis:


(1) Seize the diagnostic trouble code


It shows that the mixture proportion is terrible, which shows the necessary relationship between the failure and the throttling threshold.


Use an oscilloscope to detect the throttle position sensor. It shows that the waveform gently declines when the throttling threshold increases, which indicates that the throttle position sensor works normally.


(2) Another symptom is increased fuel consumption and decreased power.


Detect the mass air flow sensor and the oxygen sensor. The idle air mass flow is 4.8 g/s. The signal voltage of the oxygen sensor is about 0.8V.


During the idle operation, the mass air flow swings around 4.8 g/s. Pull off the MAF sensor plug and test again. The fault disappeared. As a result, replace the mass air flow sensor.


Tip:


When a sensor failure is suspicious, unplug the sensor (the
crankshaft position sensor can't be unplugged, or the vehicle won't start) to test. The ECU goes into a standby program. If the fault disappears after unplugging, it means that the failure is related to that sensor.

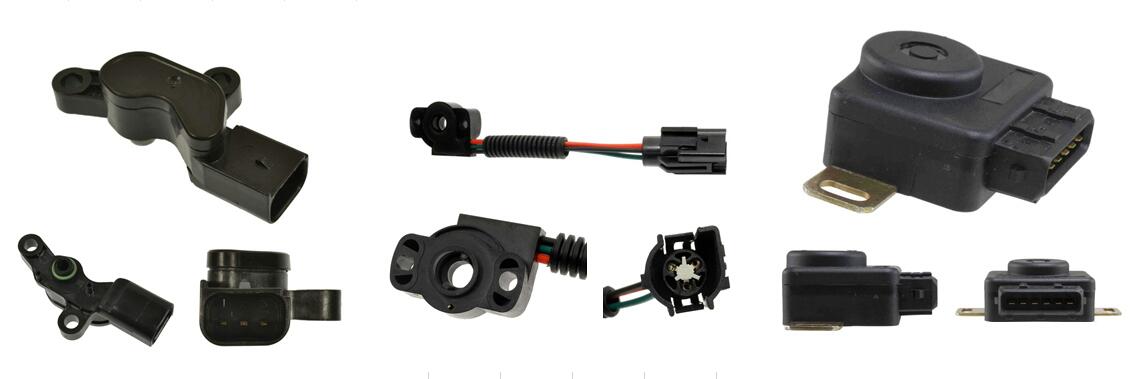

Various VOLKSWAGEN Throttle Position to Buy


Case 2


A Ford car is sent for repair. Water entered the engine cylinder and made the connecting rod bent. The engine was overhauled in a repair shop. After the repair, the car can't drive normally.


Use the automotive diagnostic scan tool for detection, which shows that the Ford TPS signal is abnormal. The regular opening under idle conditions should be about 9%, but the car's TPS signal shows 37%.

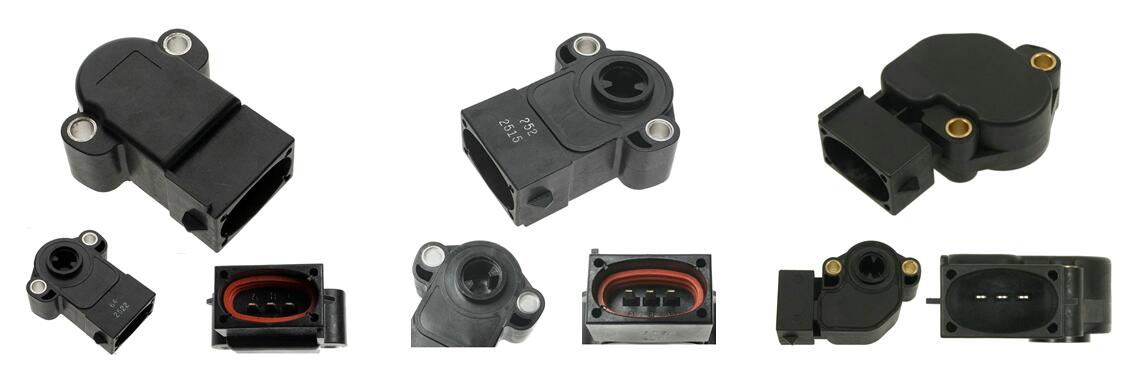

Various FORD Throttle Position Sensors to Buy

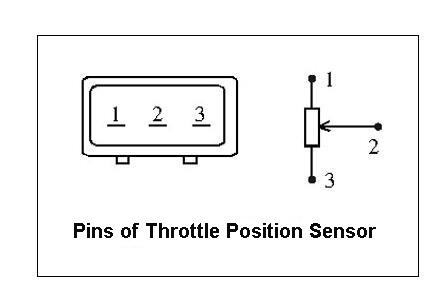

Test the throttle position sensor (as shown in the below figure). Under normal circumstances, the resistance values between the pins of the in fully closed conditions are as follows: 1-3 pins for 5.70kΩ, 1-2 pins for 5.66kΩ, 2-3 pins for 1.06kΩ. In the test, the corresponding resistance values of the car throttle position sensor are as follows: 1-3 pins for 9.89kΩ, 1-2 pins for 9.98kΩ, 2-3 pins for 1.60kΩ.



Water went into the engine intake system and entered the throttle position sensor from the throttle shaft. The sliding potentiometer resistance became large. The bad signal caused the automatic transmission shift pattern to misalign.


Therefore, to protect the automatic transmission mechanism, the PCM sends a signal to control the critical interlock solenoid valve via a multiplex control device to lock the gearshift lever in the P position. The vehicle can't continue to drive to protect the engine and the automatic transmission assembly.


The throttle position sensor can't be replaced separately. You should replace the throttle body assembly to resolve the issue.
